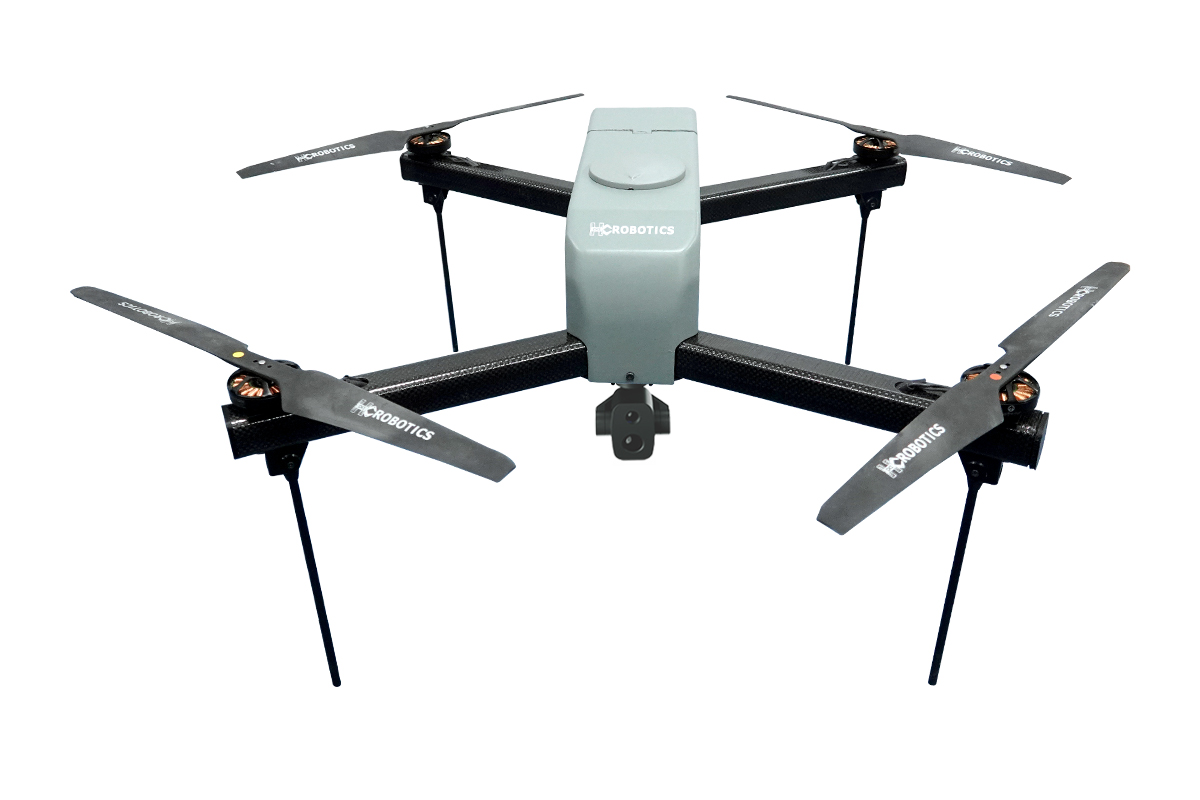

UAV - M694B
ENGINEERED TO PERFORM
The UAV-M694B is distinguished by its capability for live video streaming with minimal latency, making it indispensable for aerial surveillance, military intelligence operations, and Search & Rescue missions.
Key Features:
- Equipped with highly reliable HD/4K/EOIR camera for ISR
- Ready for Beyond Visual Line of Sight (BVLOS) operations
- Swappable payloads facilitate Multi Role Missions
- Capable of accurately estimating GPS coordinates of targets
- Seamless near real-time 1K video transmission
- Offers optional onboard image processing powered by AI
- Features foldable landing gears for easy portability
- Supports both manual and autonomous navigation
- Tailored drone solutions available
- Indigenous development
- Conveniently portable with a backpack carrying option
Technical Specifications:
| Type | AI-Powered Reconnaissance & Surveillance Drone |
|---|---|
| MTOW | 4 Kg |
| Max flight time | 50 min |
| Material | Carbon Fiber, Aluminum Frame |
| Max ascent speed | 5m/s |
| Max descent speed | 5m/s |
| Max Cruising speed | 2-20 m/s |
| Max Wind speed resistance | 10m/s |
| Operating range | 4 km |
| Operating Frequency | 2.402 – 2.4.78 GHz |
| GPS / GNSS | GNSS / QZSS L1C/A, Galileo E1-B/C BeiDou B1C, and NavIC SPS-L5 |
| Hovering Accuracy Range |
Horizontal: <1.0 m
Vertical: < 1.0 m |
| Payload Type & Mechanism | EO/IR (Day & Thermal) Camera on a 3-Axis Stabilized Gimbal |
| Primary Communication & controller | Remote controller & HCR-GCS |
| Ground Controle Software | Android HCR-GCS |
| Operating modes | Manual, Autonomous |
| Safety features | Return to home/ Land on Communication failure, Return to home/ Land on battery low. |
| Mission planning | Pre-planned, dynamically adjustable mission points. |
| Dimensions | 510x499x375 |
| Battery Capacity | Li-ion 6S Battery |
| Operating Temperature | 0 to 40 C |
Gimbal Camera specifications:
| Camera Type | Dual-Sensor EO/IR HDCamera |
|---|---|
| Image Sensor | 8 MP Effective Resolution |
| Camera FOV | Diagonal 93° Horizontal 84.5° |
| Thermal Imaging Camera Resolution | 640 x 512 |
| Zoom | Day – 6X Digital , Night- 2X Digital |
| Video Output Port | Ethernet |
| Video Format | MP4 (H.264 Standard) |
| Image Format | JPG |
| Video Resolution | 4K (3840 x 2160) @ 30 fps 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
