Current Sensor HCR-512B
Engineered for high accuracy and reliability
HCR-512B Current Sensor is the ultimate solution for precision monitoring of electrical systems in UAVs and other battery-operated gadgets.
FEATURES
High Precision:
- Calibration margin of error at just 0.039% through out the range
- Simultaneously sensing both current and voltage
- 20-bit sensor for extremely linear performance
- Precisely monitors current drawn from the battery

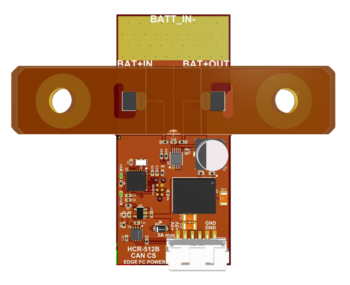

HCR-512B
Simplified Calibration:
- Only 1 value is needed for calibration compared to 7 parameters in Customized
Versatile Integration:
- Compatible with Cube, MRO and any flight controllers
- Easily integrates with microcontrollers, outputting digital voltage and current
- Heavy copper layers and tie copper cables/ boards handle currents up to 300 Amps
Advanced Design:
- Robust design suitable for harsh environments
- Compact and lightweight, ideal for space-constrained applications
- Plug and Play device, with optional calibration for enhanced precision
- Increase Indigenous Content (IC)
- Affordable Price
- Easy to Integrate
- Short Lead Time
- Customization Possible
Hardware Specifications: HCR-512B
| Rated input voltage | 7VDC to 60VDC (2S to 14S LiPO) |
|---|---|
| Rated input current | 300A DC |
| Additional output voltage | 5.3VDC / 5A |
| Microcontroller | ARM® Cortex® Microcontroller |
| Interface | FDCAN (Compatible with DroneCAN) |
| Connectors | Molex ClickMate 2.0 – 6POS |
| Calibration | Non-Calibrated: ± 0.1% full span Calibrated: Less than ± 0.039% full span |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 85x69x12 mm |
| Weight | 52 g |
