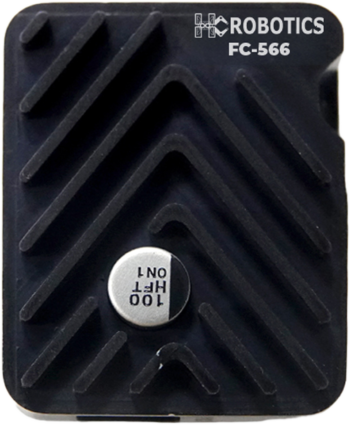

FLIGHT CONTROLLER – HCR-566
Introducing the Smallest, Ultra – Lightweight Flight Controller Engineered for exceptional efficiency, precision, and security – perfect for mission-critical, single-use UAV operations.
Highlights:
- Compact and lightweight design optimized for mission-critical UAV operations.
- Engineered for tactical and single-use drone applications.
- Advanced control architecture delivers exceptional flight stability and precision.
- No onboard data storage ensures maximum operational security and confidentiality.
- Secure boot and fail-safe recovery enhance firmware and system protection.
- Fully designed, developed, and validated in India for strategic self-reliance.
- Each unit undergoes rigorous testing to ensure mission-ready reliability.
Features:
- Plug-and-fly design enables quick setup and effortless deployment.
- High-speed processing ensures responsive and accurate flight performance.
- CAN and UART connectivity support seamless integration with sensors and payloads.
- Digital power regulation minimizes noise and ensures stable system operation.
- Advanced filtering algorithms provide smooth and vibration-resistant flight control.
- Wide input voltage range with surge protection ensures operational reliability.
- Zero onboard data storage guarantees complete mission confidentiality.
- Supports fixed-wing, multirotor, and hybrid UAV configurations.
Specifications:
| Model Number | FC-566 |
|---|---|
| Processor | STM32H753 ARM® Cortex®- M7 480Mhz |
| RAM/ Flash | 01/02 MB |
| Supported Firmware | Ardupilot and PX4 |
| Dimensions | 27.5 X 34 X 14.6 mm |
| Weight | 17 grams with enclosure |
| Enclosure Material | Aluminium |
| Power | Input: 5 to 36 V DC; Output: 05 V DC |
| Sensors | Dual 3-axis: Accelerometers & Gyroscopes, 3-axis Magnetometers, Absolute Pressure Sensors |
| Connectors | JST-GH, USB-C, Bottom facing 4 X PWM/Power Header |
| Interface & Protocol | 6 x PWM Outputs, 2 x GPIO, 2 x FD CAN (08 MB) 1 x Serial Port, 1 x Wide Range Power Input (3V 36V DC) 1 x 12C Bus, 1 x ADC input, 1 x USB Serial and Timing based RC inputs |
| LED | Status, mode, and power indicators |
| Operating Temperature | -40°C to +85°C |
| Typical Vehicles | Multirotor, Rover, Fixed wing, VTOL, Boats and general robots |
