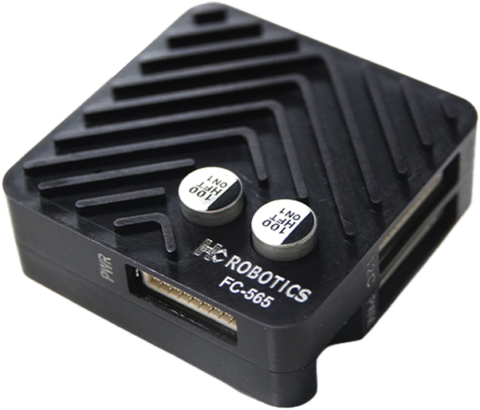

FLIGHT CONTROLLER – HCR-565
The Edge Flight Controller – HCR-565 represents the cutting edge of UAV intelligence — a fusion of miniaturized engineering, advanced flight algorithms, and military-grade reliability. Weighing just 9.41g, this compact marvel delivers performance that rivals full-sized systems. Built from 16+ years of HC Robotics’ flight control expertise, every unit is tested, validated, and optimized for seamless mission performance across air, land, and sea platforms.
Highlights:
- Ultra-lightweight 9g design delivers high-performance flight control.
- Defense-grade architecture ensures reliable operation in demanding, harsh and challenging environments.
- FD-CAN and Ethernet connectivity enable secure, high-speed communication and data transfer.
- Plug-and-play system simplifies installation and delivers seamless system integration.
- Compatible with UAV, UGV, and maritime platforms offering an array of versatile cross platform deployment.
- Supports AI algorithms based autonomy and future-ready mission capabilities.
- Compact design with enterprise-grade performance for next-generation applications.
Features:
- STM32H753 Cortex-M7 processor delivers high-speed computing for advanced flight control.
- Dual-redundant IMUs provide precise navigation and enhanced operational safety.
- Wide 3V–36V input range supports flexible power configurations.
- High-speed Ethernet enables real-time data transfer and payload communication.
- FD-CAN support ensures reliable multi-sensor and dual-GPS connectivity.
- Multiple interfaces support seamless integration with various peripherals and systems.
- 2GB onboard storage enables comprehensive flight data logging and analysis.
- Compatible with all current leading flight control ecosystems and firmwares.
- Optimized for multirotor, VTOL, fixed-wing, rover, boat, and unmanned ground vehicles.
Specifications:
| Model Number | FC-565B |
|---|---|
| Main Processor | STM32H753 ARM ® Cortex®-M7 480Mhz |
| RAM | 1MB |
| Flash | 2MB |
| Logging Flash | 2Gb |
| Sensors | Dual 3-axis Accelerometers |
| Connectors | JST-GH; USB-C; Bottom facing 4 × PWM/Power Header |
| Interface and Protocol | 2 × High-speed FD-CAN ports (up to 8 Mbit/s) 1 x 100Mb Ethernet 5 × UART ports 2 with full hardware flow control (RTS/CTS) 1 × USB interface for configuration and firmware update 1 × SPI interface (SCK, MOSI, MISO, CS) for external sensors 1 × I2C bus (SCL, SDA) for peripheral expansion 8 × PWM outputs for motor or servo control 1 x S.Bus output 3 × GPIO / ADC pins for general-purpose control or triggering 2 × Power inputs (3 V – 36 V) with onboard 5 V regulated outputs (500 mA) |
| LED | Status, mode, and power indicators |
| Power | Input: 3V DC to 36V DC; Output: 5V DC |
| Weight | 9 g (With enclosure – 23.6g) |
| Dimensions | 38.2 X 38.2 X 13.7 mm |
| Operating Temperature | -40°C to 85°C |
| Enclosure | Aluminium case |
| Supported firmware | Ardupilot, PX4 |
| Typical Vehicles | Multirotor; Rover; Fixed wing; VTOL; Boats and general robots |
